Square Fish Farming Cage 3m*3m-12m*12m HDPE Plastic Aquaculture Cage with Long Life and High Survival Rate
-
Resaltar
3m*3m-12m*12m Square Fish Farming Cage
,Long Life HDPE Fish Cage
,High Survival Rate Plastic Aquaculture Cage
-
Tamaño del modelo3m*3m-12m*12m
-
Diámetro de la tubería flotante200 mm/250 mm/315 mm/350 mm/400 mm
-
MaterialTubería HDPE
-
FormaCuadrado
-
Profundidad de agua máxima50m
-
Resistencia al vientoTyphoon de 12 grado
-
Resistencia a las ondasOndas de 7m
-
Resistencia actual1.2m/s
-
Vida útil15 años
-
Diámetro de tubería90 mm/110 mm/125 mm
-
Diámetro de la tubería de soporte110 mm/125 mm
-
Profundidad mínima del agua6m
-
Capacidad de producción6000 sets/año
-
Opciones de tubería flotante200 mm/250 mm/315 mm/350 mm/400 mm
-
Sistema de amarreSistema de rejilla
-
Cantidad de orden mínima5
-
Precio1000
Square Fish Farming Cage 3m*3m-12m*12m HDPE Plastic Aquaculture Cage with Long Life and High Survival Rate
Offshore Aquaculture Equipment Square Plastic Fish Farming Cage
Product Features
Nanfengwang aquaculture cages offer superior wind, current, and wave resistance. Constructed with marine-grade HDPE piping for exceptional durability and longevity, these cages provide optimal growing conditions with high survival rates.
- Versatile deployment in water depths ranging from 6m to 50m
- Exceptional weather resistance: withstands 12-grade typhoons, 7m waves, and 1.2m/s currents
- Spacious aquaculture capacity with ample living and growing space
- Long service life: frame lasts over 15 years
- Easy net replacement system
- Marine-spec HDPE material offering high strength, toughness, oxidation resistance, and UV protection
Technical Specifications
HDPE Round Floating Cage Frame
| Circumference (M) | Floating Pipe Diameter (MM) | Handrail Pipe Diameter (MM) | Stand Pipe Diameter (MM) |
|---|---|---|---|
| 30 | 200 | 90 | 110 |
| 40 | 200/250 | 90/110 | 110/125 |
| 50 | 250 | 110 | 125 |
| 60 | 250/315 | 110 | 125 |
| 70 | 315 | 110/125 | 125 |
| 80 | 315 | 110/125 | -- |
| 90 | 350 | 125 | -- |
| 100 | 350/400 | 125 | -- |
| 120 | 350/400 | 125 | -- |
| 150 | 350/400 | 125 | -- |
| 200 | 400 | 125 | -- |
HDPE Square Floating Cage Frame
| Dimensions L×W (M) | Floating Pipe Diameter (MM) | Handrail Pipe Diameter (MM) | Stand Pipe Diameter (MM) |
|---|---|---|---|
| 3×3 | 200 | 90 | 110 |
| 4×4 | 200 | 90 | 110 |
| 5×5 | 200 | 90 | 110 |
| 6×6 | 200/250 | 90/110 | 110/125 |
| 7×7 | 250/315 | 110 | 125 |
| 8×8 | 250/315 | 110 | 125 |
| 9×9 | 250/315 | 110 | 125 |
| 10×10 | 315 | 110 | 125 |
| 12×12 | 315/350 | 110/125 | 125/-- |
| 15×15 | 315/350 | 110/125 | 125/-- |
| 20×20 | 350/400 | 125 | -- |
| 30×30 | 350/400 | 125 | -- |
Mooring System
Our advanced "Grid" mooring system for deep sea and freshwater applications utilizes interconnected ropes and shackles to create a unified cage network. This innovative design ensures all cages move in unison, preventing destructive collisions even in challenging sea conditions.

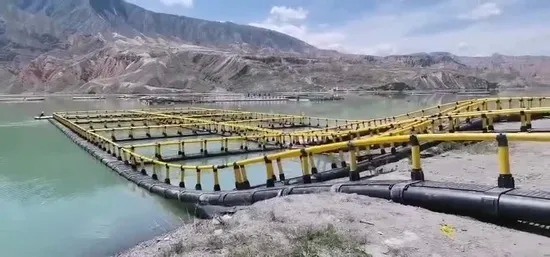

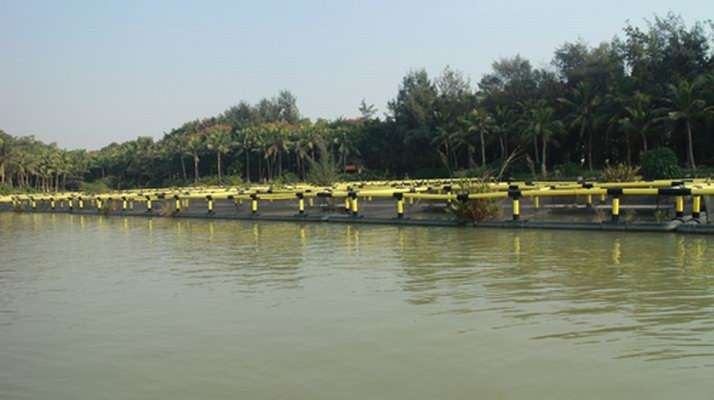

Product Gallery
